Carbon Fiber Sheets: A Performance Revolution in Sports Equipment

2025-09-10 22:13:35

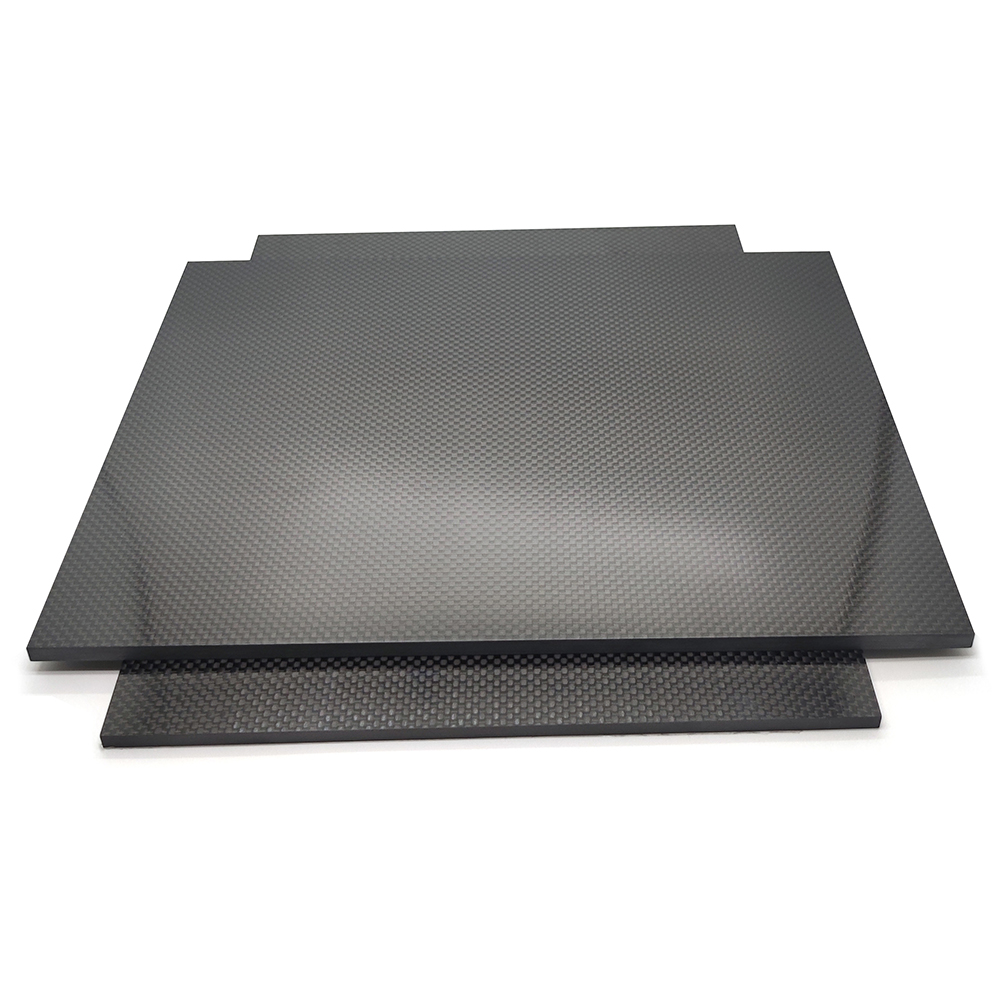

In the sports equipment industry, Carbon Fiber Sheets are revolutionizing performance standards. Made of resin-impregnated carbon fibers, these composite materials, with their tensile strength of 3000 MPa (six times that of steel) and density of just 1.75-1.93 g/cm³ (less than one-quarter that of steel), have become a core choice for high-end sports equipment. From Olympic cycling venues to FIS-certified ski tracks, Carbon Fiber Sheets, through structural innovation and performance optimization, are driving the evolution of sports equipment towards lightweight, high strength, and precision.

I. The Technical Core of Carbon Fiber Sheets: A Breakthrough in Materials Science for Sports

The performance advantages of carbon Fiber Sheets stem from their unique microstructure and manufacturing process. By laying carbon fiber tows in multiple axial configurations, such as at 0°, ±45°, and 90°, and curing them with epoxy resin at high temperatures, they create a composite material that combines anisotropy with high specific strength. This structure imparts three core properties:

Mechanical breakthroughs: Tensile strength far exceeds that of metals, while the specific stiffness is over twice that of aluminum alloys. In snowboard applications, the carbon fiber layer can increase the torsional stiffness of the board by 40%, ensuring stability during high-speed skiing. Laboratory data shows that when subjected to a lateral force of 300kg, a snowboard made of carbon fiber panels experiences only one-third the deformation of a traditional wooden structure.

Vibration Damping: The damping coefficient of carbon fiber is three times that of steel, effectively absorbing shock during movement. In bicycle frame testing, models using carbon fiber panels experienced a 62% reduction in handlebar vibration when navigating bumpy roads, significantly reducing hand fatigue.

Design Freedom: Computer-aided design (CAD) and automated molding processes enable the formation of complex curved surfaces. A bicycle frame developed by a national sports research institute utilizes a single-pivot, integrated rear triangle structure, keeping the frame weight under 950g while increasing lateral stiffness by 23%, demonstrating the feasibility of using carbon fiber panels in the manufacture of complex structures. II. Competitive Sports: A Performance Testbed for Carbon Fiber Sheets

In top-level competitions, carbon fiber sheets have become a crucial piece of equipment for pushing human limits:

1. Cycling: The Perfect Balance of Speed and Control

In the Olympic road cycling events, a national team's bikes utilize T1100-grade carbon fiber sheets, utilizing a three-layer gradient layup technology to achieve the following:

Surface layer: 45° twill carbon fiber fabric for enhanced torsional stiffness

Middle layer: 0° unidirectional carbon fiber for optimized longitudinal rigidity

Inner layer: ±15° cross-ply for enhanced impact resistance

This construction results in a frame weighing only 1150g, yet capable of withstanding 1200N of pedaling force without deformation. Wind tunnel testing shows that at 45km/h, this frame reduces aerodynamic drag by 18% compared to traditional aluminum alloy frames, enabling athletes to maintain higher average speeds during long distance races.

2. Golf: A Precision Revolution in Power Transmission

A golf club developed by a professional sports laboratory features a 46tf/mm² high-modulus carbon fiber plate embedded in the mid-shaft. This was achieved through:

Optimizing the bias layer angle: Increasing the proportion of ±45° layers from 30% to 45%, achieving torsional stiffness 1.2 times that of a steel shaft.

Nano-modification technology: Adding 0.5% silicon nanoparticles to the carbon fiber prepreg reduces energy loss by 12%.

High-speed video analysis shows that when using this club, clubhead speed increases by 5 km/h and ball deviation decreases by 27% at impact, demonstrating the breakthrough in power transmission precision achieved by the carbon fiber plate.

3. Snow Sports: Unwavering Performance in Extreme Environments

In FIS-certified snowboard testing, the Carbon Fiber Board's sandwich structure achieved a significant performance boost:

Surface layer: 3K carbon fiber cloth provides abrasion protection

Core layer: Polyurethane foam and carbon fiber honeycomb composite, with a density of only 0.3g/cm³

Base layer: ±45° cross-coated carbon fiber panels for enhanced torsional resistance

Low-temperature laboratory testing showed that this structure maintains a stable elastic modulus at -20°C. Compared to traditional wooden boards, it offers 33% greater grip on ice and snow, and 41% higher vibration absorption, providing stable support for athletes in extreme weather conditions.

III. National Fitness: Accessible Technology for Carbon Fiber Plates

With breakthroughs in manufacturing technology, carbon fiber plates are moving from the competitive arena to the mass market:

1. Sports Shoe Innovation: Energy Return in Carbon Plate Running Shoes

A sports research team has developed a carbon fiber plate running shoe with a full-length carbon fiber plate embedded in the sole. This utilizes:

Spoon-shaped structure: The forefoot is tilted 11mm upward, leveraging the principle of leverage to improve stride efficiency.

Foam Composite: Combined with a new supercritical foam material, it achieves an energy return rate of 85%.

Biomechanical testing shows that amateur runners wearing this shoe experienced a 15-30 second/km improvement in marathon pace, while also reducing knee impact force by 18%, demonstrating the economic benefits of carbon fiber plates for long-distance exercise.

2. Fitness Equipment Upgrade: Lightweight and Durable

A fitness equipment manufacturer has released carbon fiber dumbbells, utilizing hollow carbon fiber tubes filled with aluminum foam technology to achieve:

Weight Reduction: 40% lighter than cast iron dumbbells

Corrosion Resistance: Passed a 1,000-hour salt spray test, extending lifespan by three times

Optimized Grip: The carbon fiber texture on the surface achieves a coefficient of friction of 0.6, preventing slippage during exercise
